The URL structure
The Linking API can be managed just by building an URL. The URL always has the same path and all of the customizations are made in the parameters.
The path is always:
https://datastudio .google.com/reporting/create
After the path, you can add the parameters to customize the experience of the user of the dashboard or change the dashboard itself.
Change the report settings
There are some standard parameters you can add to the Linking URL. These are also called control parameters:
- c.reportId: The id of the report you want to address. The bold part is the reportId in a usual Data Studio report link: https://datastudio.google.com/reporting/ca5902da-ad31-1z34-13f8-98ec5f3ad950/page/p_xu283kdkwl
- c.pageId: The id of the page you want to address. The bold part is the pageId in a usual Data Studio report link: https://datastudio.google.com/reporting/ca5902da-ad31-1z34-13f8-98ec5f3ad950/page/p_xu283kdkwl (If unspecified: first page)
- c.mode: In which mode the user starts. Possible values are view and edit (If unspecified: view mode)
So a possible URL would be:
There is currently one setting for the report you are sharing:
- r.reportName: Set the name of the report (If unspecified: Template Report Name - Date, Time)
Workflow of the Linking API

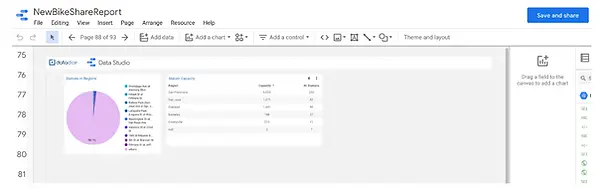

When you click on one of these prepared links, at first you see the report with the selected page, in the selected mode and you can work with the dashboard already. Additionally at the top right corner is a “Save and share” button.

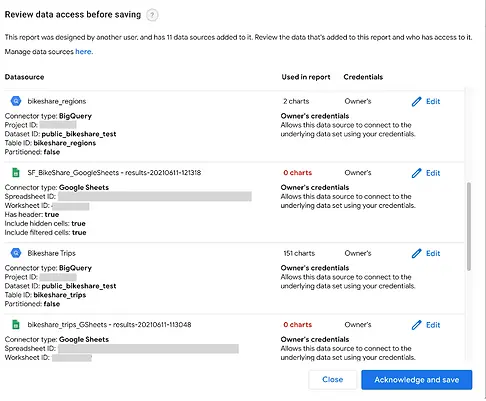

After clicking on this button a new menu for setting up the data sources appears.
You see the connected data sources and more information about the different connector settings (e.g. for BigQuery data: project, dataset, table, …). Furthermore, you can edit the data source, change fields, reconnect to another source, and more.
When you click then the “Acknowledge and save” button, a new report gets created with all the settings you have chosen.
Switch the Data Sources
Set up Data Sources
You can change the data source settings by creating the new dashboard from the template. But it is also possible to do adjustments already with the “programmed” URL.
For the shared dashboard you can also replace or update the connected data sources. The settings for the different connector types are highly different. Due to that, we are focusing on the connector we have the most experience with, Google BigQuery.
The data source parameters for a BigQuery source you can add to the URL are the following:
- ds.alias.datasourceName: The name of the data source
- ds.alias.connector: The connector you want to use (in our case BigQuery)
- ds.alias.projectId: The id of the GCP project you want to connect
- ds.alias.type: which type of data it is (e.g. TABLE)
- ds.alias.datasetId: The id/name of the dataset you want to connect
- ds.alias.tableId: The id/name of the table you want to connect
The following connectors are currently supported by the Linking API:
- BigQuery
- Cloud Spanner
- Google Analytics
- Google Cloud Storage
- Google Sheets
- Google Surveys
- Search Console
The data source alias

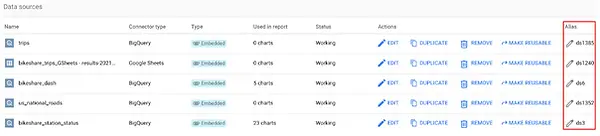

The missing part is the alias of the data source. In the previous weeks, you might have already recognized the alias next to the data source.
Alias of the data sources
Every data source has an id attached which always starts with “ds” and then a random number behind. To change the data source settings for the new report, you have to use the alias of the template's data source in the final URL.
An example URL with changing the data source would be:
https://datastudio.google.com/reporting/create?c.reportId=ca5902da-ad31-1z34-13f8-98ec5f3ad950&c.pageId=p_xu283kdkwl&c.mode=edit&ds.ds334.datasourceName=changeddatasource&ds.ds334.connector=bigQuery&ds.ds334.projectId=project-123&ds.ds334.type=TABLE&ds.ds334.datasetId=marketing_data&ds.ds334.tableId=daily_channels

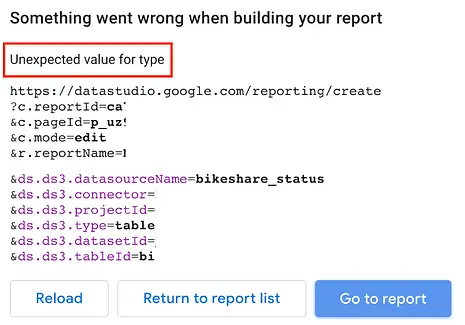

Error in the configuration
If there is an error in your URL you also get an error message.
In this case, the value of the type parameter is wrong. It should be TABLE.
Conclusion
Google improved with this API the way of duplicating and sharing dashboards and changing during the process the most important configurations. The idea is to build template reports and create custom reports out of these, with their own report settings and other data source connections.
